Shop drawings
Fabrication shop drawings the shop builds from — stairs, rails, connections, piece marks, bills of material.
Mostly DC, Maryland, and Virginia. Based in Bel Air, Maryland.

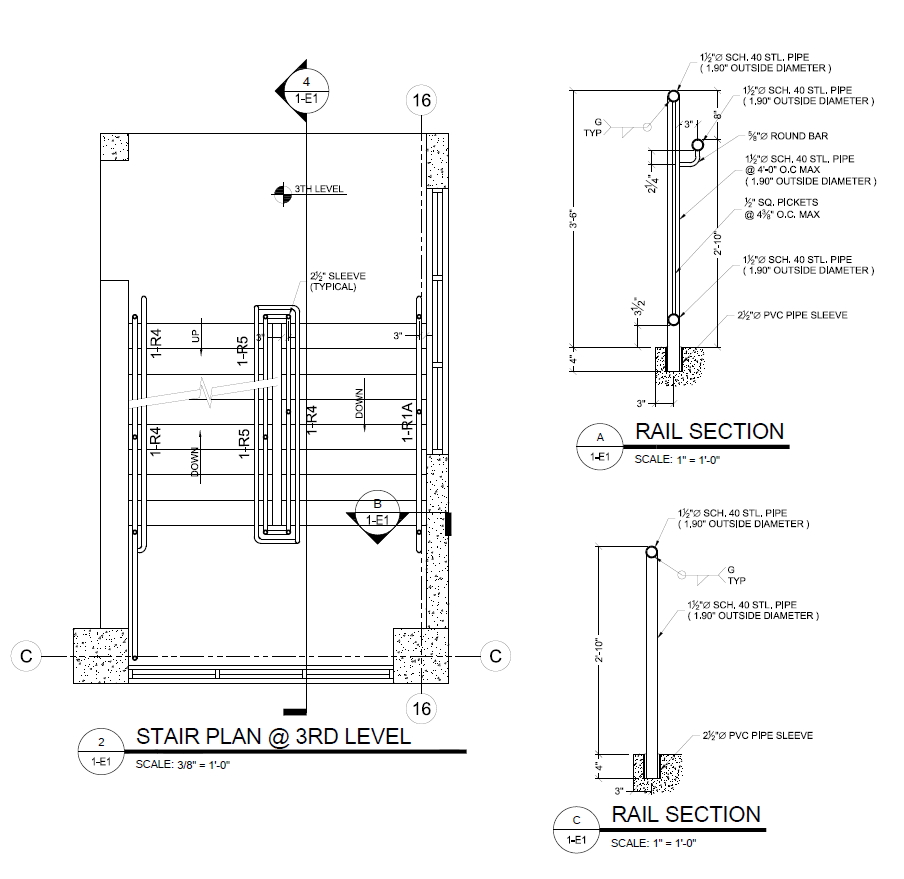

Shop drawings are how steel and misc. metals get built. Plans, sections, and details with dimensions, materials, and piece marks — not a pretty picture of the building.
Send the contract drawings, RFIs, and any field changes. We scope the sheets and draw. Quote by the set.
- Stairs, rails, connections, embeds
- Piece marks and bills of material
- Coordination notes the shop can actually use
Quote by the set. Request more info below, or email info@eastcoastcad.com.
